PRODUCT CODE:
MANUFACTURERS CODE:
DESCRIPTION

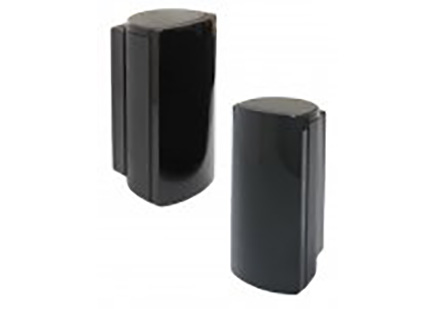

R-IT 2241 – Cod. 94130000
Modulated IR outdoor coded photocells, 180° rotation and nominal range of 20 m. Two pairs of the same model can be installed without interference as long as they are appropriately coded at the moment of installation.
| TX Power supply | 12-24 Vac-dc |
| RX Power supply | 12-24 Vac-dc |
| TX Absorption | 10 mA |
| RX Absorption | 25 mA |
| Relay contact capacity | 1A Max a 30 Vdc |
| Protection degree | IP 54 |
| Dimensions | 41x94x45 mm |
SEAV s.r.l. hereby declares that the following product: IR/IT 2241 conforms to the provisions set forth in the EMC Directive 2004/108/EC.
